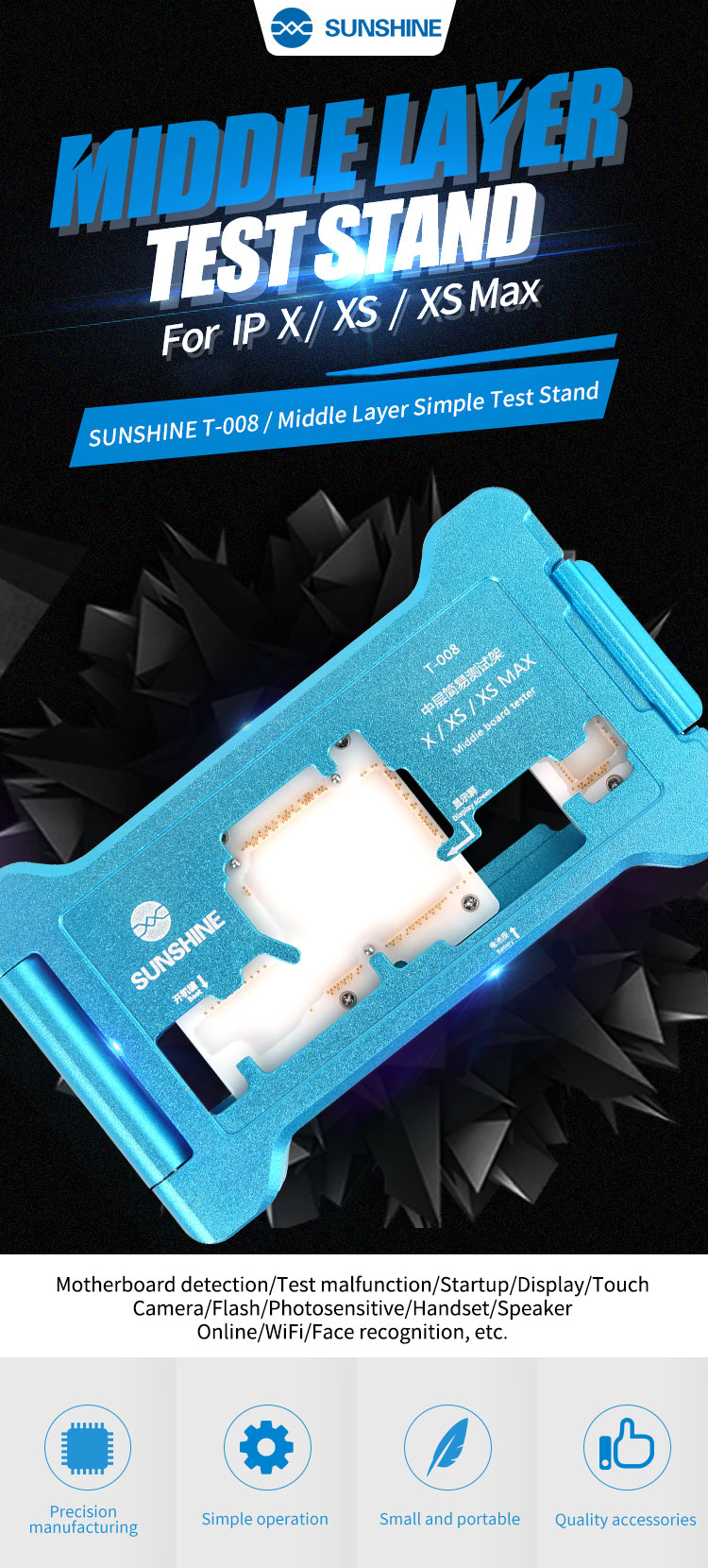

SUNSHINE T-008

IP X series

Motherboard simple middle test stand

Middle test stand

Motherboard detection/Test malfunction/Startup/Display/Touch

Camera/Flash/Photosensitive/Handset/Speaker

Online/WiFi/Face recognition, etc.

Precision manufacturing

Simple operation

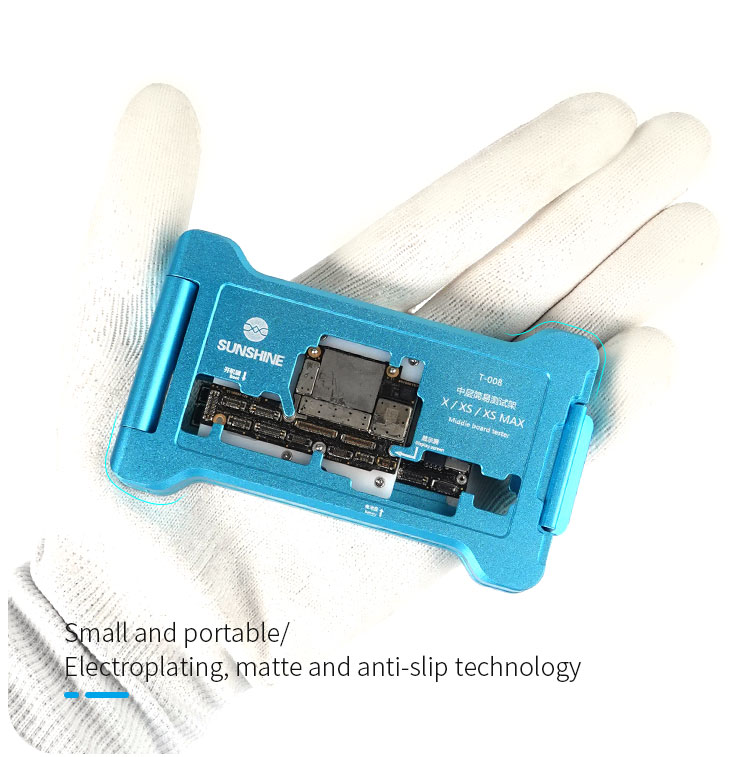

Small and portable

Quality accessories

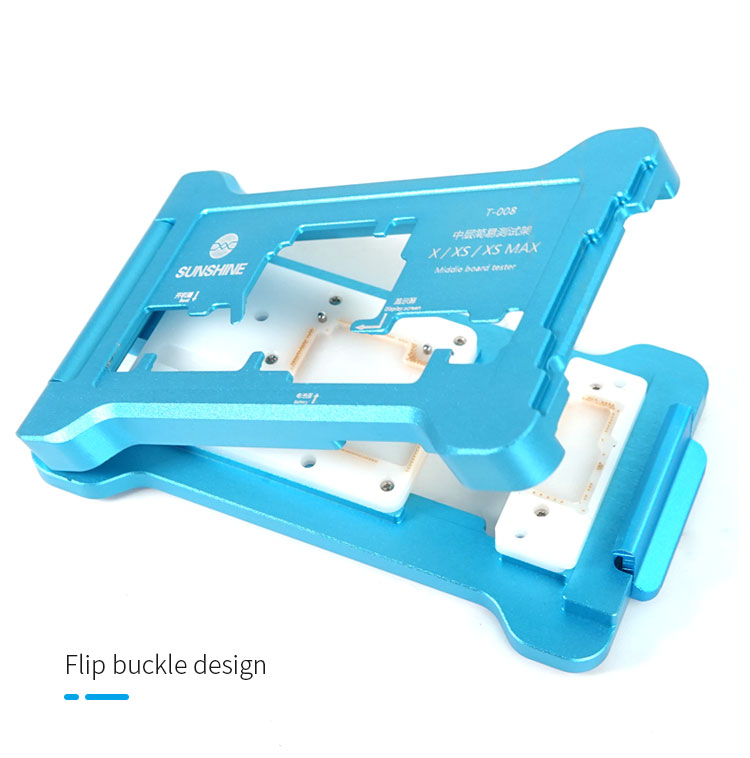

Flip buckle design

Tight fit, no deformation, no harm to the motherboard

Easy to align and durable

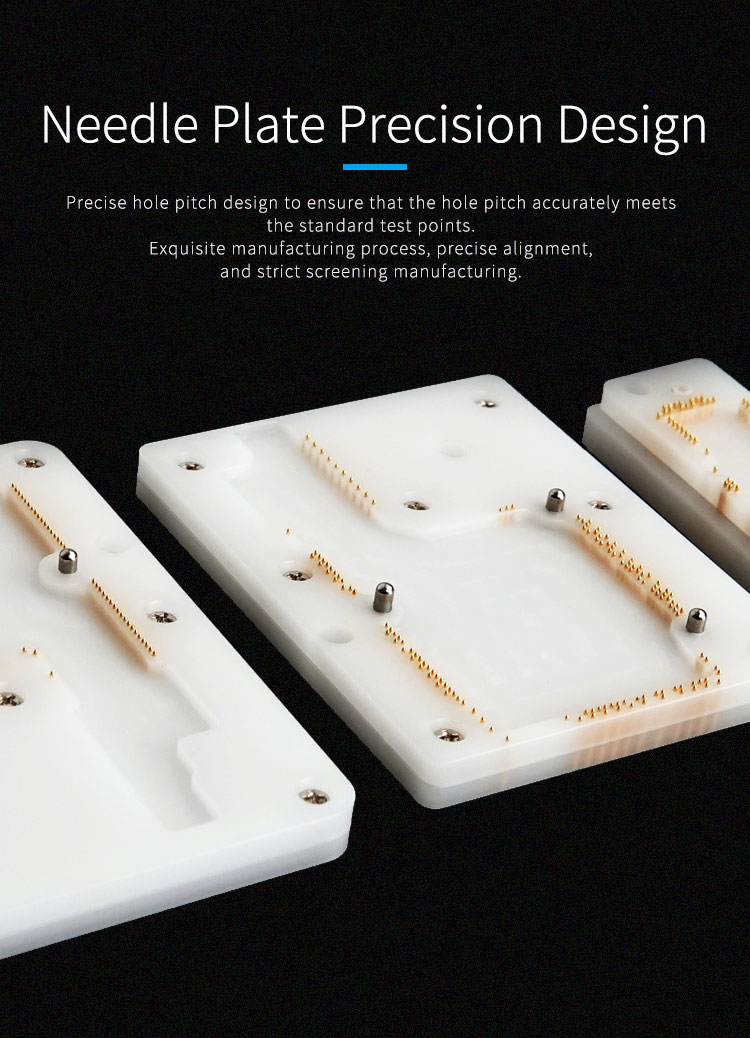

Needle plate precision design and accurate registration

Precise hole pitch design to ensure that the hole pitch accurately meets the standard test points

Exquisite manufacturing process, precise alignment, and strict screening manufacturing bring you better and more efficient motherboard testing.

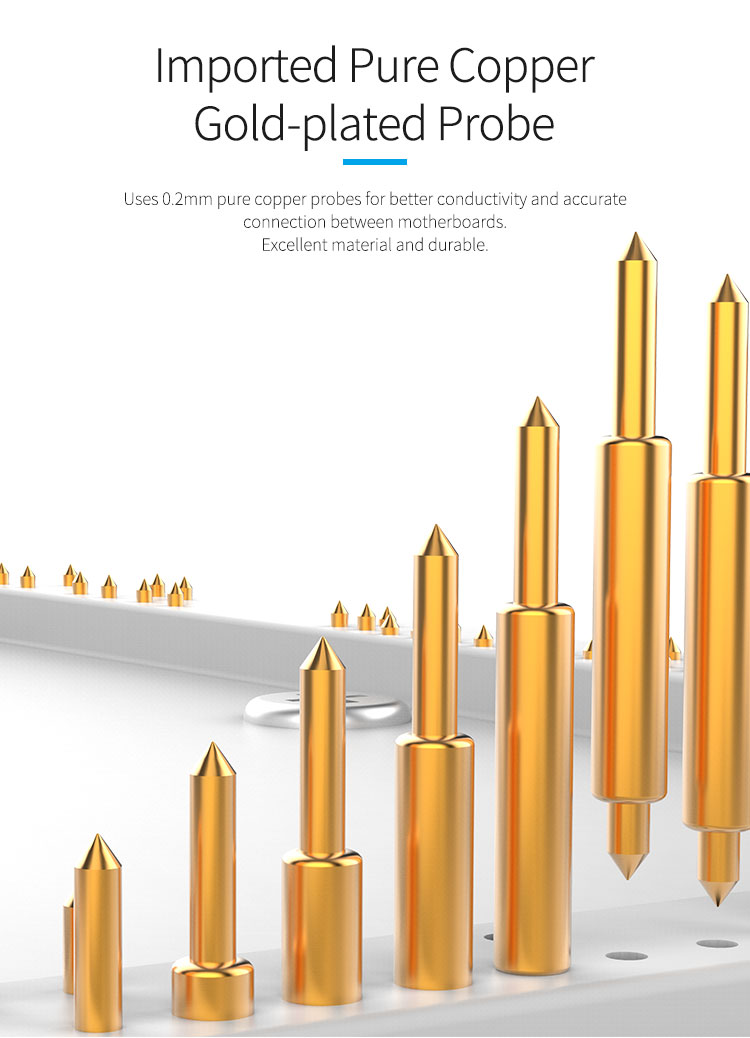

Imported high quality·Pure copper gold-plated probe

Uses 0.2mm pure copper probes for better conductivity and accurate connection between motherboards

Excellent material and durable

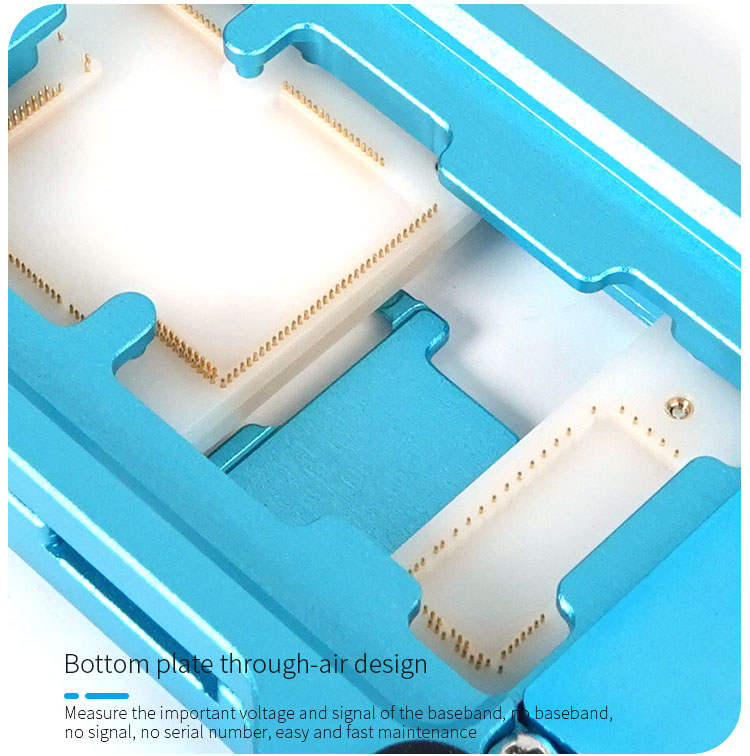

Bottom plate through-air design

Measure the important voltage and signal of the baseband, no baseband, no signal, no serial number, easy and fast maintenance


Electroplating, matte and anti-slip technology

Electroplated surface is not easy to fade or color drop

Scrub process to increase friction

Non-slip, soft and comfortable feeling

CNC machining process

Using CNC machinery and equipment for processing and production, effectively improving accuracy

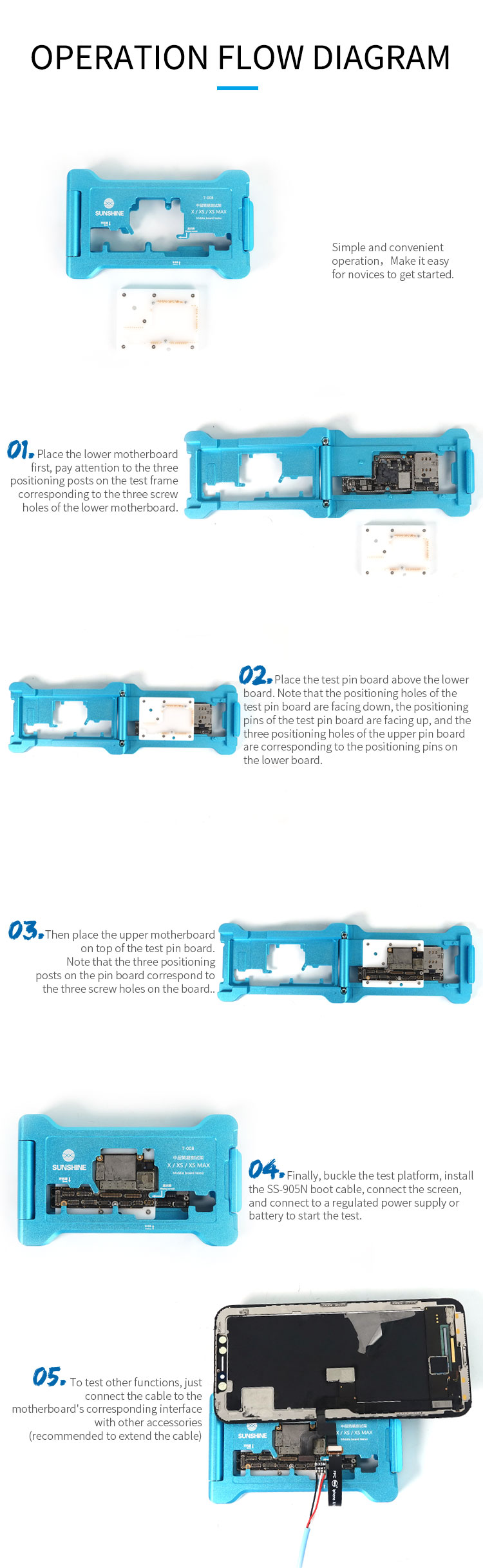

Operation flow diagram

Simple and convenient operation

Make it easy for novices to get started

Place the lower motherboard first, pay attention to the three positioning posts on the test frame corresponding to the three screw holes of the lower motherboard

Place the test pin board above the lower board. Note that the positioning holes of the test pin board are facing down, the positioning pins of the test pin board are facing up, and the three positioning holes of the upper pin board are corresponding to the positioning pins on the lower board

Then place the upper motherboard on top of the test pin board. Note that the three positioning posts on the pin board correspond to the three screw holes on the board.

Finally, buckle the test platform, install the SS-905N boot cable, connect the screen, and connect to a regulated power supply or battery to start the test.

To test other functions, just connect the cable to the motherboard's corresponding interface with other accessories (recommended to extend the cable)


Middle simple test stand

Suitable for IP X / XS / XS Max mid-level motherboard repair test

For IP X / XS / XS Max

High-quality probes · Longer life

Flip cover design·Convenient alignment

Small and portable

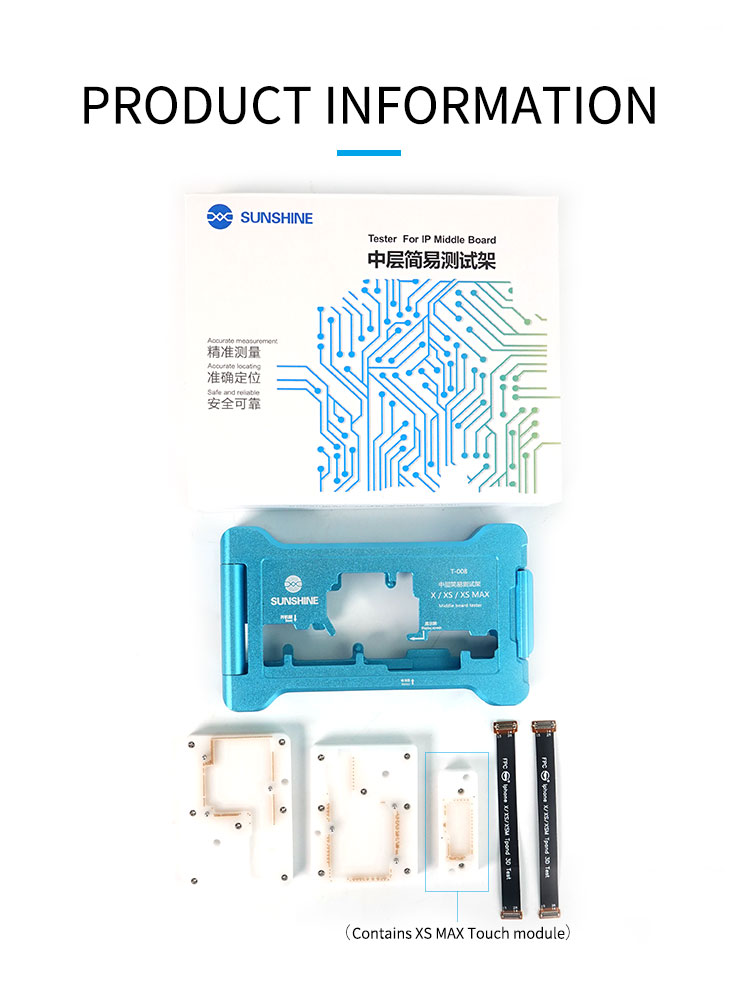

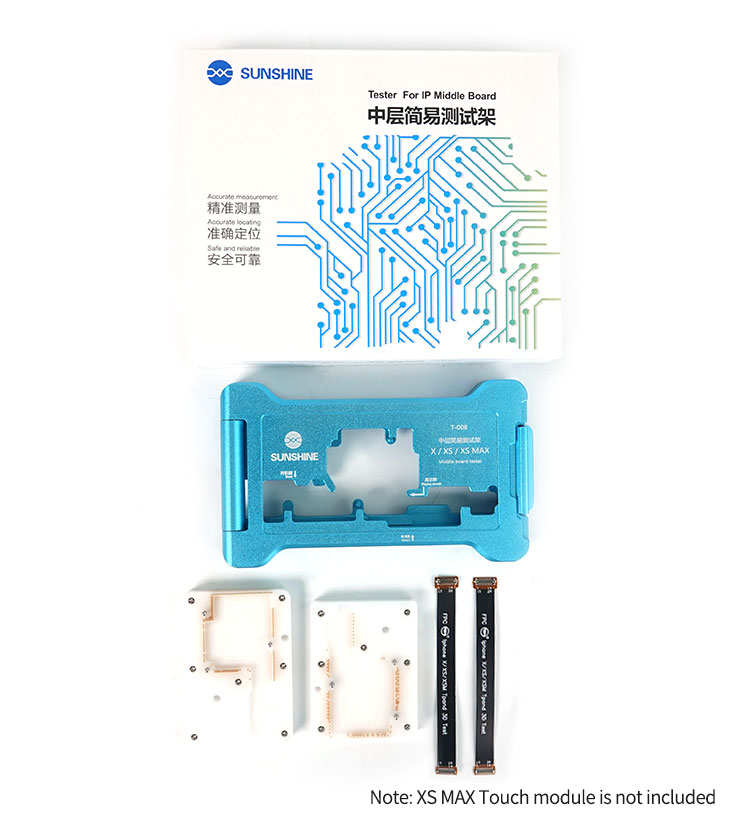

Package includes:
1 X Depending on the model you choose
